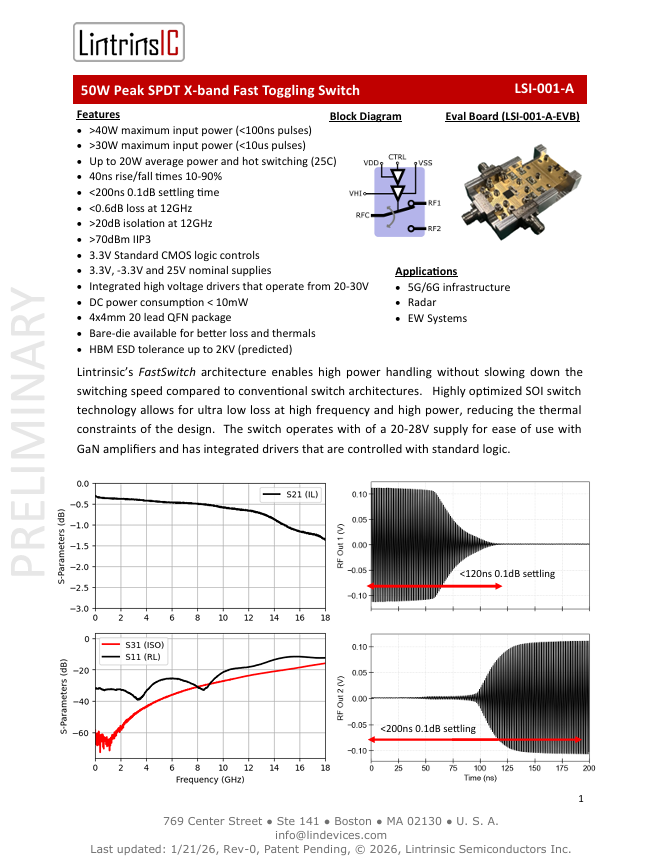

Introducing Lintrinsic’s FastSwitch technology with our FS-50W-18G:
A switch optimized for X-band performance.
Currently available:
– Bare die, QFN, and EVB V0-HP with up to 50W power handling (data above)
– Bare die, QFN, and EVB V0-HI with 0.7dB IL, 33 dB ISO, 15W power handling

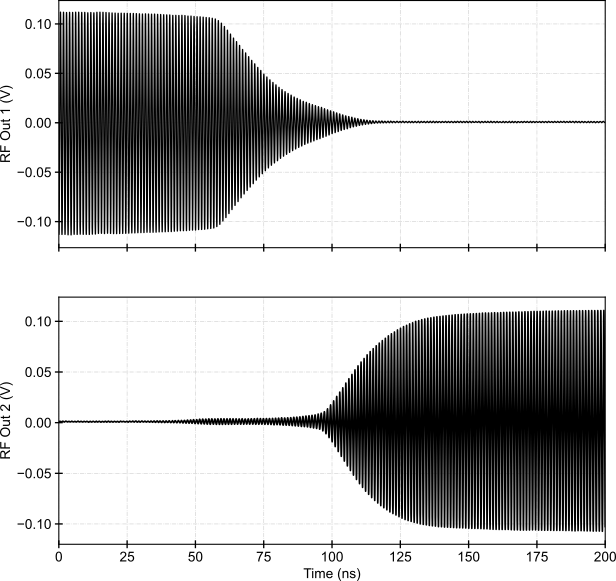

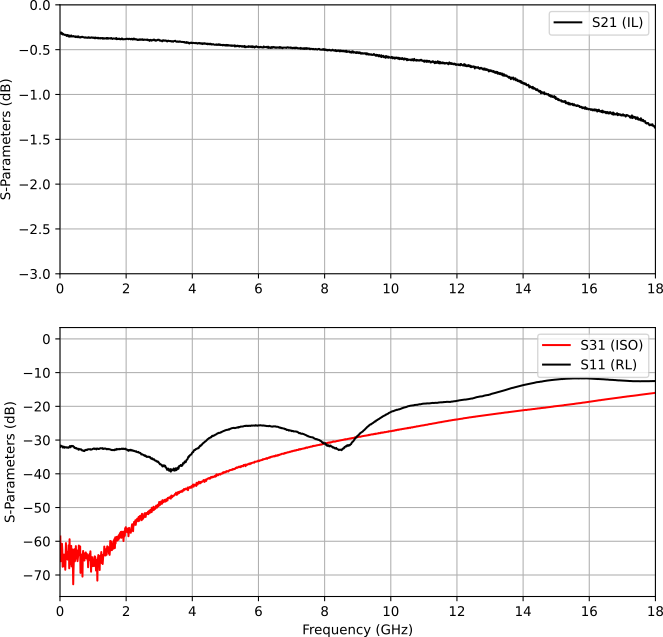

Measurements above are in the QFN package with overmold – Bare die parts will have improved performance.
Above are measurements from our “V0” chip. There are several improvements that can be made over the next few months:
– Lower loss, reducing IL to 0.55dB at 12GHz
– Better isolation down to 33dB at 12GHz

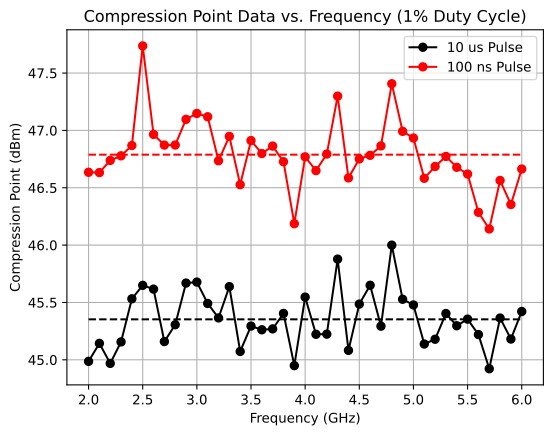

– Improved power handling up to 47dBm with 10us pulses.
Email: info@lintrinsicsemi.com if you are interested in making an order or want to receive updates as we start to to make our products available for pre-release.
